Blade R9 Sava Bikes North America

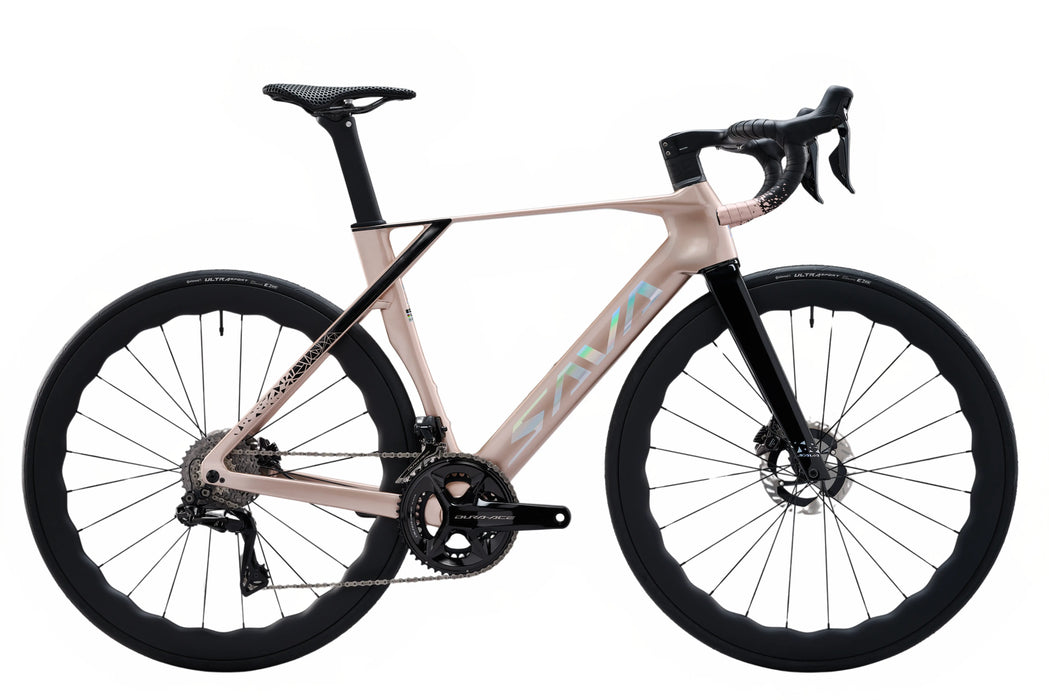

Blade R9

by Sava Bikes North America
$8,799.00 - $8,799.00
$8,799.00
$8,799.00 - $8,799.00
$8,799.00

When the best and fastest are your drivers, the Shimano Dura-Ace 9270 Di2 equipped BLADE R9 is the clear choice! Leveraging the latest in aero design and still offering modern adjustability, this pro-tour grade machine blends premium materials with leading-edge design and adds Shimano's benchmark components to guarantee that your best is never compromised.

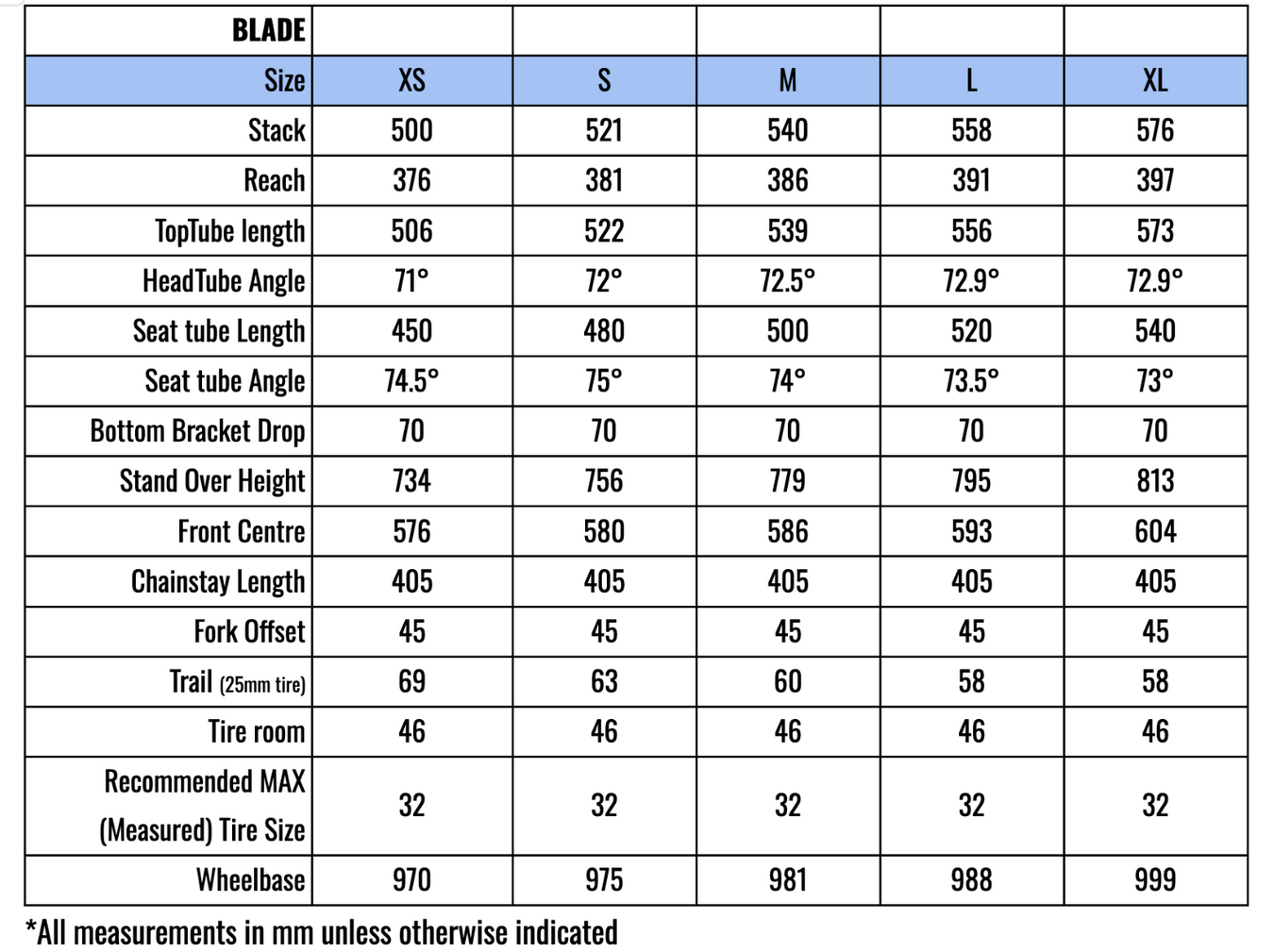

Geometry Chart

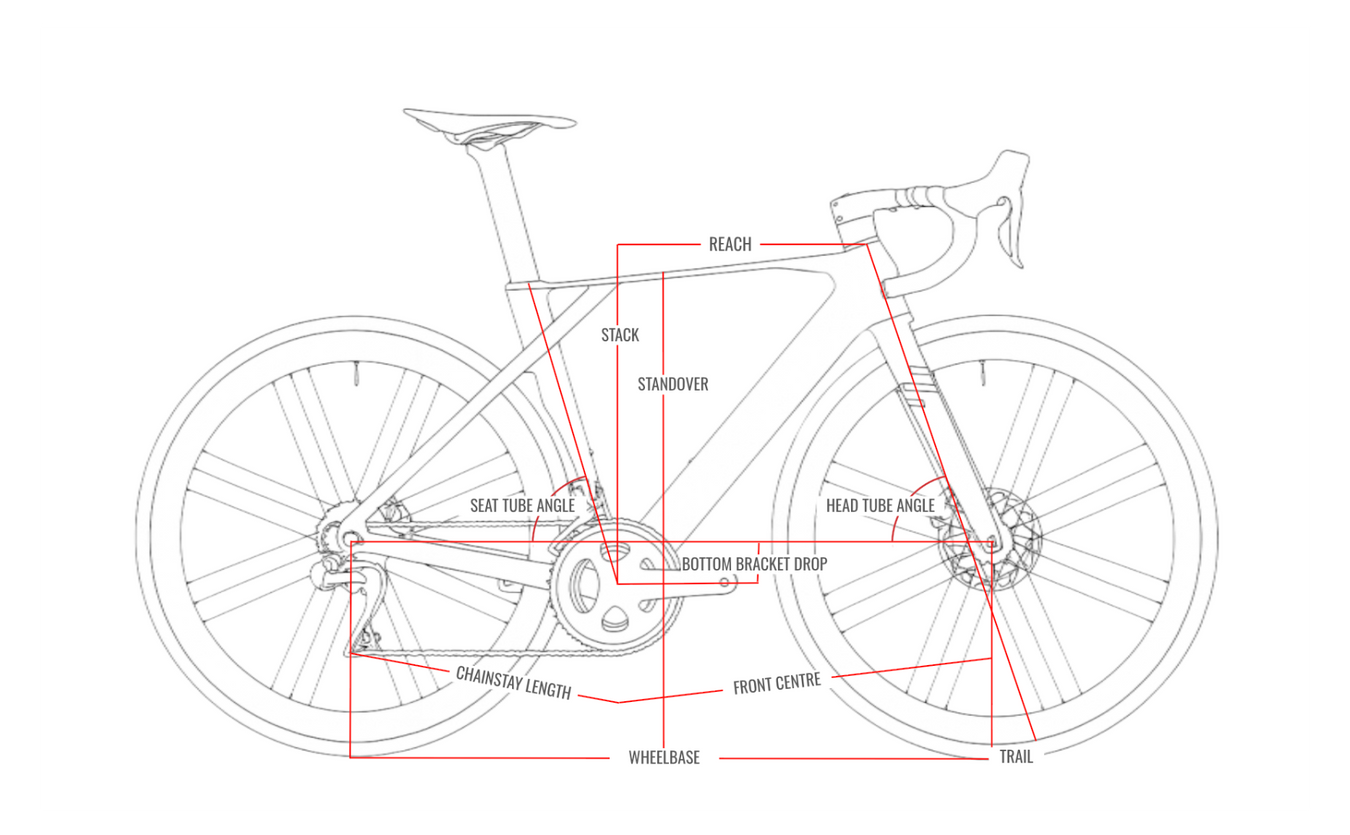

SAVA BLADE Geometry Diagram
Size (Alpha) 45XS 48S 50M 52L 54XL
Stack 500521540558576
Reach 376381386391397
TopTube Length 506522539556573
HeadTube Angle 71°72°72.5°72.9°72.9°
SeatTube Length 450480500520540
SeatTube Angle 74.5°75°74°73.5°73°
BB Drop 7070707070
Stand Over Height 734756779795813
Front Centre 576580586593604
Chainstay Length 405405405405405
Fork Offset 4545454545
Trail (25mm tire) 6963605858
Tire Room (mm) 4646464646
Max Tire Size 3232323232
Wheelbase 970975981988999
Frame
Premium Carbon optimized for low weight and stiffness
Fork
Premium Carbon with aero blades, tapered steerer, 12mmX100mm thru axle
Derailleurs
Shimano Dura Ace R9250 Di2 (2x12 Speed)
Front Chainwheel
Shimano Dura Ace 9200 50x34
Bottom Bracket
T47 Threaded
Cassette / Chain
R9200 11-34T / Shimano M9100
Shifter / Brakes
Shimano Dura Ace R9270 / R9250 Hydraulic
Wheel / Tire
SAVA DB50 Carbon / Continental Grand Prix 28mm
Cockpit
Carbon Aero Handlebar / SB05 Alloy Stem
Saddle
DACHOS 3D PRINTED

The application of Carbon Fibre

Carbon fiber, a novel material, is among the strongest and lightest composites, highly resistant to corrosion and rust, with robust carbon bonds within its fibers, making it the top choice for rockets, aerospace, luxury sports cars, and high-end bicycles
