Bike Sizing Guide – 19" Frame / 29" Wheels

Frame: T800 carbon fiber

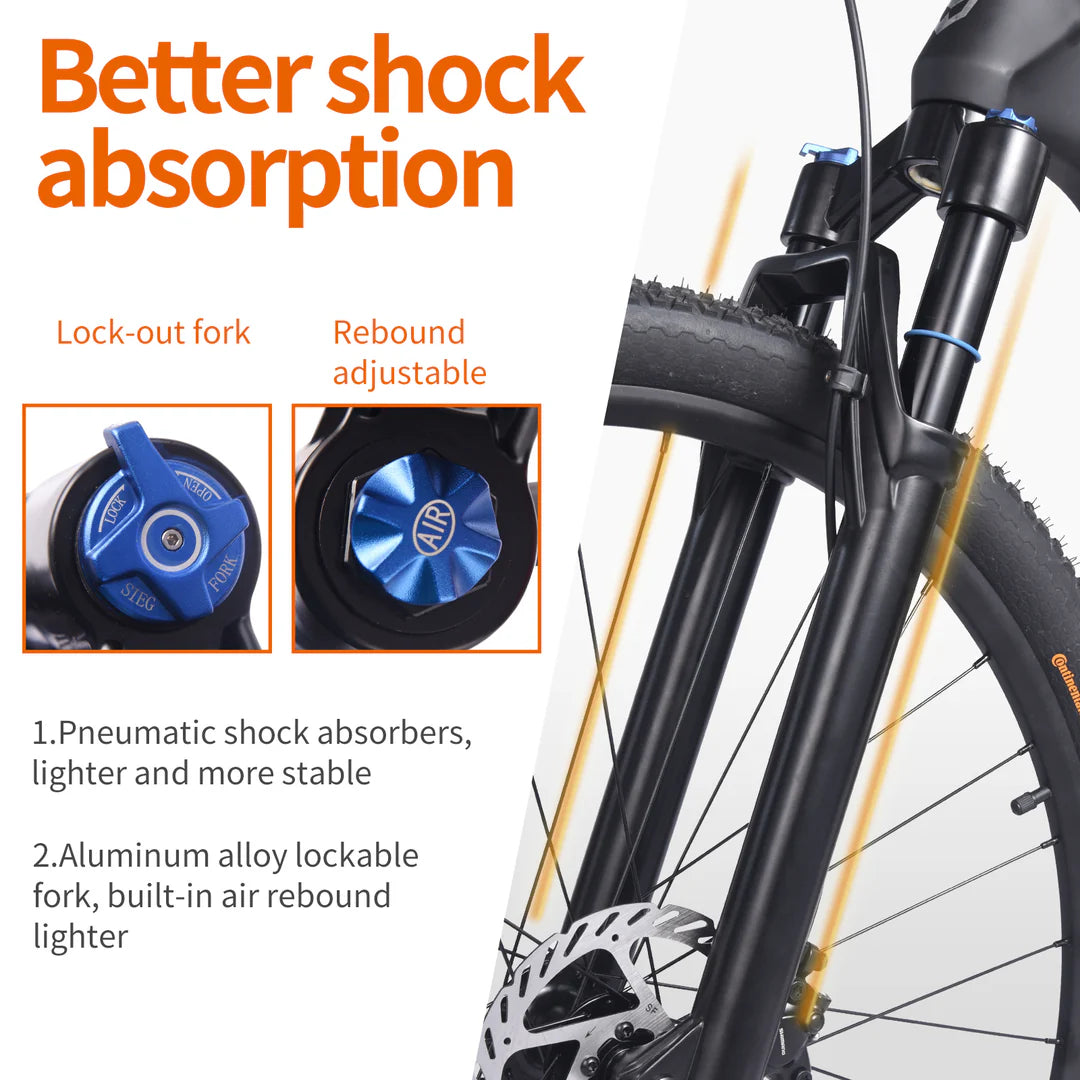

Fork: XC-340BOOST AIR suspension fork 28.6 M15*110 ,Travel 100
Rim: Alloy 29*32H*14G
Hub: DH908TF, 2 bearings 14G*32H*M15*110, DH933TR 14G*32H*M12*148
Shaft: M12*180mm aluminum
Tire: Continental 27.5 (29)x2.0
Handlebar: Aluminum ,Straight, , φ22.2*31.8*720mm 9°*H10
Seat post: Aluminum , 31.6*350
Chain: SHIMANO CN-LG500,114LINKS FOR LG 9/10/11 SPEED,
Crankset: SHIMANO FC-U6000-2.9/10/11-SPEED, 2-PCS FC, 170MM, 36-22T
BB: SHIMANO BB-MT500-PA
Right shift lever: SHIMANO SL-U6000-11R, 11-SPEED
Left shift lever: SHIMANO SL-U6000-L. 2-SPEED.
Front derailleur:SHIMANO FD-U6000-M.2X10/11, 34.9MM.GEAR:36T/40T,CL:48.8/51.8MM
Rear derailleur:SHIMANO RD-U6020-11, CUES, SGS 11-SPEED,
Freewheel: SHIMANO CS-LG400-11, CUES, 11-SPEED, 11-13-15-17-20-23-26-30-34-39-45T

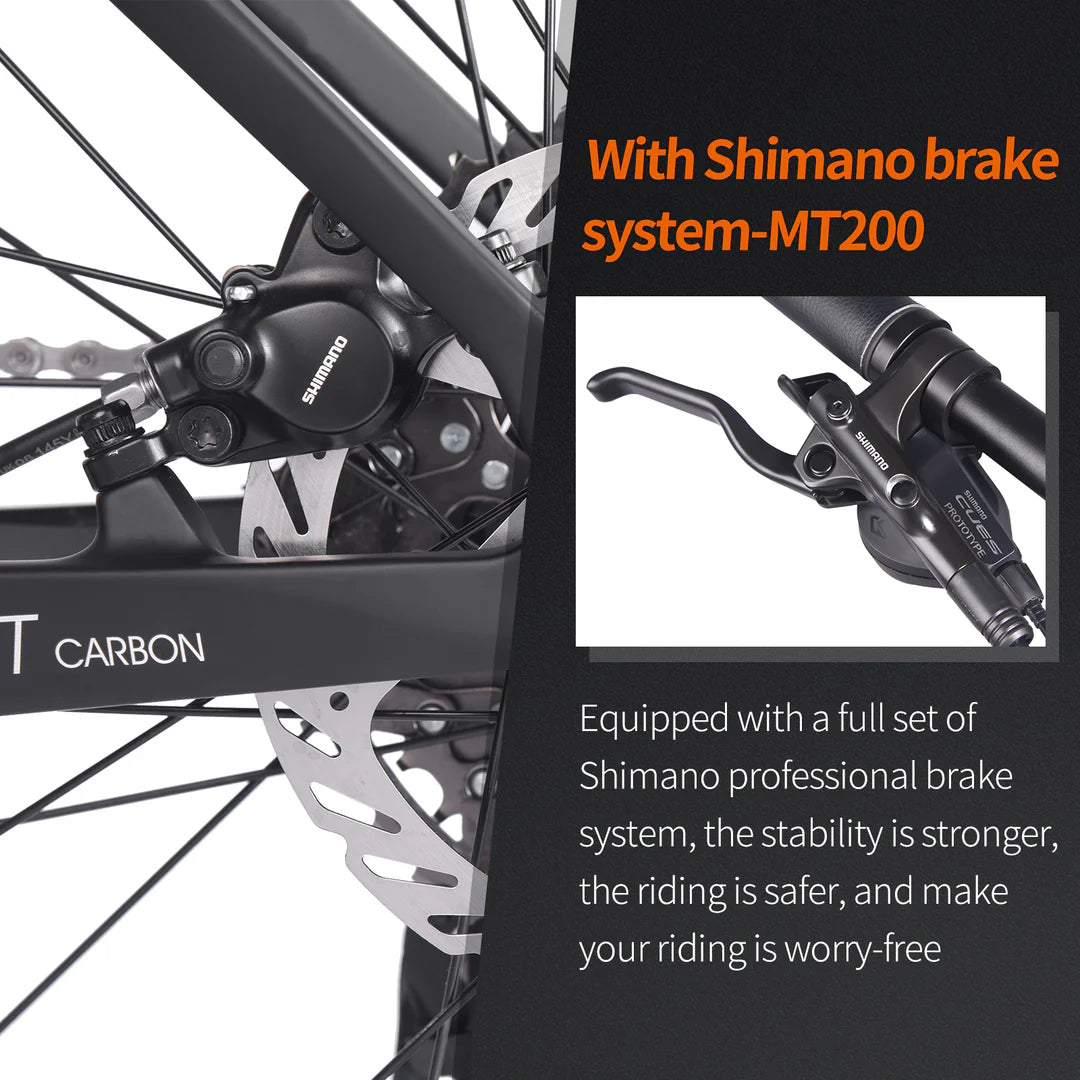

Front Brake:SHIMANOALTUS BL-MT200(L), BR-MT200(F),ADAPTER,750MM
Rear Brake:SHIMANOA ALTUS BL-MT200(R), BR-MT200(R)ADAPTER,1450MM
Saddle: YBT, ergonomic
Pedals: Sanyun, Aluminum, 9/16(free include)
